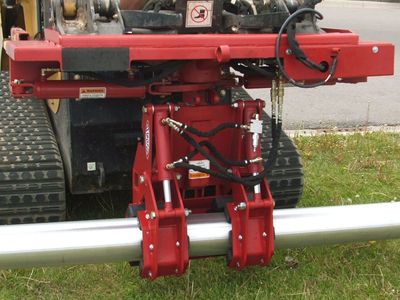

EZ-0008 Standard Pole Setter

• The Double Pole Claw attaches to skid steers or any other machine  that is equipped with the Universal Quick 'Tach mounting system.
• Rated for a 32 foot, 1100 pound pole.
• Rotates 127° to the operators left when attached to an EZ Spot UR Double Cylinder Rotating Base.
• Can also be attached to an EZ Spot UR Fixed Non-Rotating Base.
• Jaws will open to 14 inches and close down to 3 inches. Inserts can be purchased which allow the attachment to close down to 0.
• The jaws are rubber lined to prevent damage to the pole.
• Tool head weighs 218 pounds.
• Total weight with the Double Cylinder Rotating Base is 730 pounds.
• Total weight with the Fixed Non-Rotating Base is 400 pounds.
• Composed of Grade 80 material or higher and core welded to withstand years of wear and tear.

•  Two 2" x 6" clamp cylinders confidently open and close the jaws of the attachment while ensuring a solid grip throughout.
• Each clamp cylinder has a breakout force of 9,425 lbs.
• The two jaws operate independently and close in sequence for safety and security.
• Comes standard with rubber lining on the jaws to protect the pole and allow use on any type of pole.
• Comes complete with hoses, flush faced couplers, spring hose mount and wiring harness.
• Can be adapted to fit excavators, wheel loaders, telehandlers and backhoes*.

 *Requires specialty bolt-on mount.

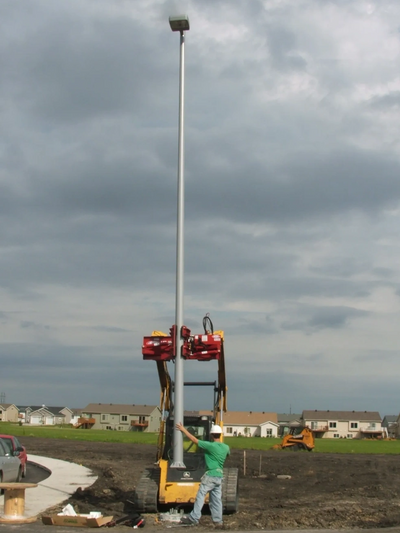

 The EZ Spot UR Double Pole Claw is the ideal tool for any job that  involves moving or setting poles of any shape or size up to 32 feet in  length and 1,100 pounds.  The Double Pole Claw can handle fence posts,  pole barn poles, or utility poles up to 32 ft. long with ease and place  them with precision.  The Double Pole Claw opens from 3 to 14 inches.   The rubber lined jaws will prevent damage while still confidently  securing the pole.  The Double Pole Claw will allow you more versatility  than you ever thought possible.  Save time, money, and labor with the  EZ Spot UR Double Pole Claw.
