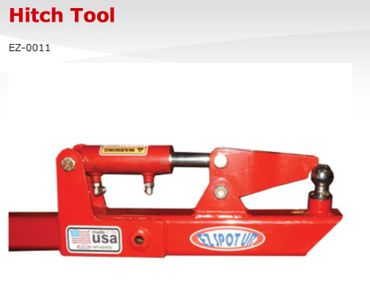

EZ-0011 HITCH TOOL
Hitch Tool Information
Key Features
- Attaches to a skid steer, track loader, or any other machine that is equipped with the Universal Quick 'Tach mounting system.
- Tool head weighs 50 lbs. With the Double Cylinder Rotating Base the attachment weighs 480 lbs.
- Can also be attached to an EZ Spot UR Fixed Non-Rotating Base or the Compact Utility Base.
- Rated tongue weight capacity* on the Double Cylinder Rotating Base is 6000 lbs.
- Rated tongue weight capacity* on the Fixed Non-Rotating Base & Compact Utility Base is 2000 lbs.
- 2" x 3.5" clamp cylinder has a breakout force of 9,425 lbs.
- 24" long
- Composed of Grade 50 steel or higher to withstand years of wear and tear.
- Comes complete with hoses, flush faced couplers, spring hose mount, and wiring harness.
- Can be adapted to fit excavators, wheel loaders, telehandlers, and backhoes with a special bolt-on mount.
*Max Weight Capacity = Machine Operating Capacity - Weight of Attachment
Should not exceed the rated weight capacity of the attachment
Product Description and Applications

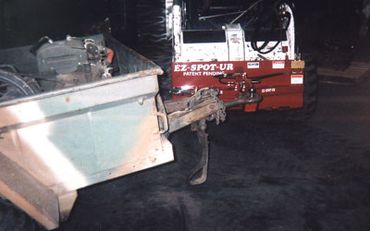

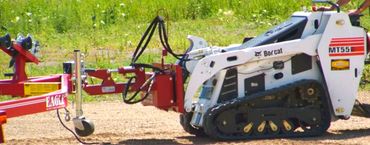

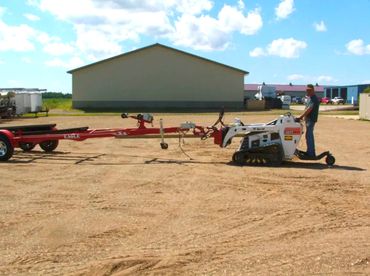

The EZ Spot UR Hitch Tool makes it EZ to move, park, or reposition a heavy trailer. It has a 3 inch square receiver for going on the EZ Spot UR Double Cylinder Rotating Base, Fixed Non-Rotating Base, or the Compact Utility Base . This attachment is one-man operational. With the 2" x 3.5" clamp cylinder, the operator can lock the hitch without leaving the machine!
