EZ-HD08 HEAVY DUTY POLE SETTER

Utility

      Utility Videos

      The EZ Spot UR EZ-HD08 Pulling Utility Poles

      The EZ Spot UR EZ-HD08 Handling Utility Poles

      The Heavy Duty Pole Setter pulling and setting a pole

      The Heavy Duty Pole Setter pulling and setting utility poles

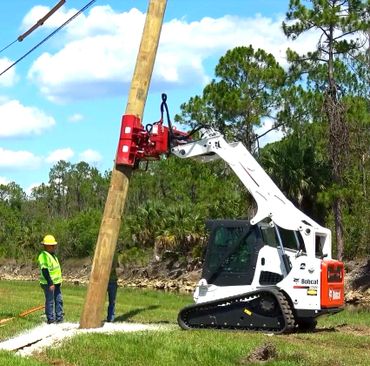

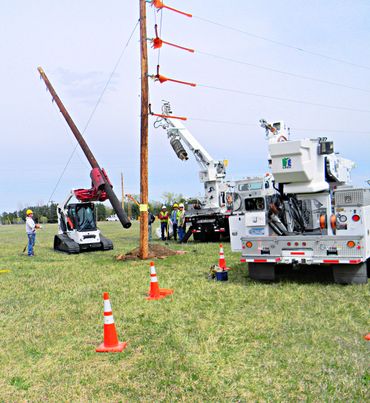

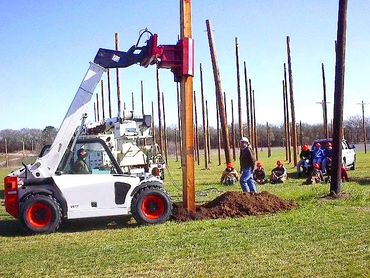

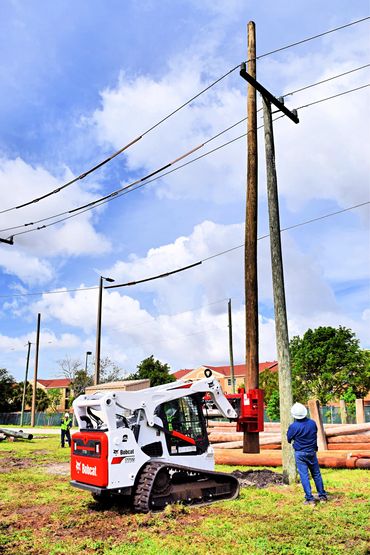

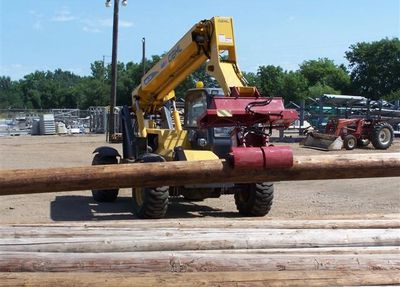

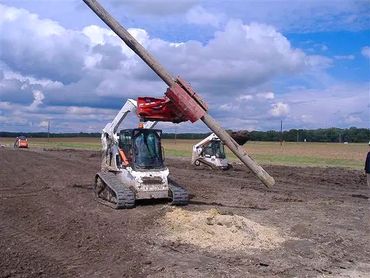

      Set Poles!

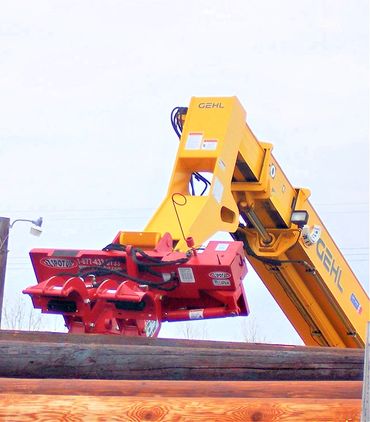

      Rotates 115° to operator's left.

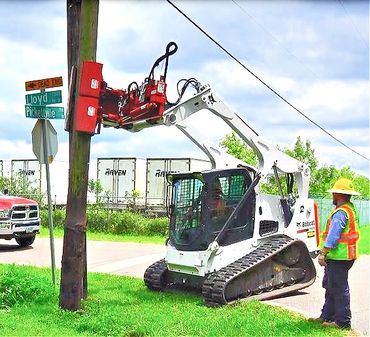

      Pull Poles!

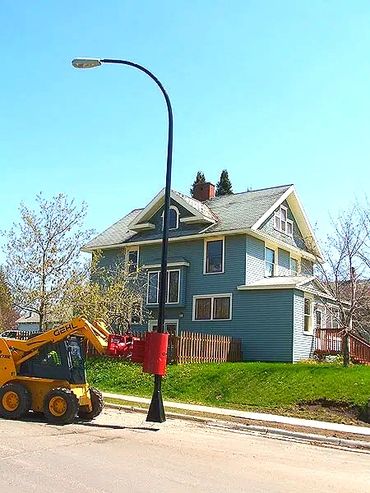

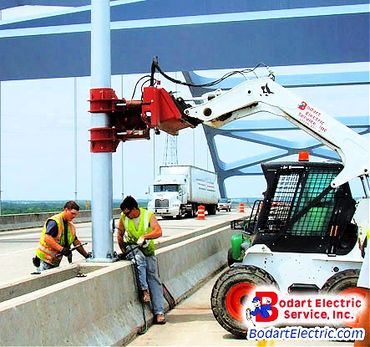

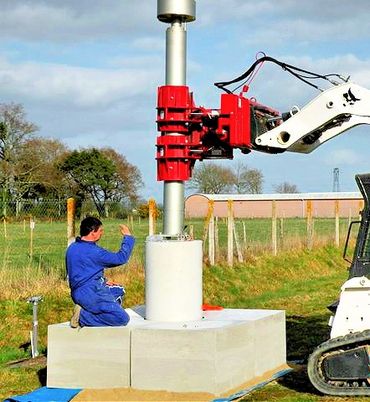

      Handle Street Lights!

      Heavy Duty Pole Setter

      SEE HOW THE EZ SPOT UR HEAVY DUTY POLE SETTER CAN MAKE YOUR JOB EASIER!

      Infrastructure

        Infrastructure Videos

        EZ-HD08 Handling Pilings on a Construction Site

        EZ-HD08 Handling Pilings on a Construction Site

        SAFE, SAFE, SAFE!


        Faster and more precise than a digger derrick, the EZ Spot UR HEAVY DUTY POLE SETTER will allow the operator to reach places that were before not permitted with a digger derrick.

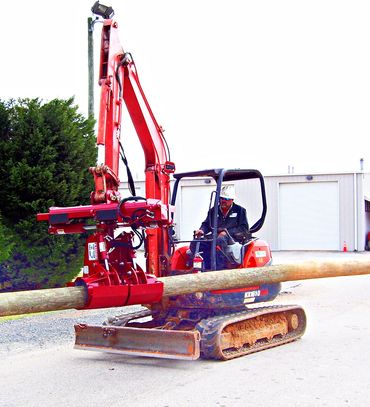

        The EZ Spot UR HEAVY DUTY POLE SETTER is designed to handle big, heavy utility poles up to 45 feet long. With the Heavy Duty Pole Setter, the operator can pick up a pole from the ground or a trailer and rotate completely vertical. At this point the operator can easily position the pole the way he wants, without any effort, and with complete safety. Call us at (877) 433-5733 to learn why our HD Pole Setter remains one of our top sellers!

        INDUSTRIES:
        • Utilities
        • Rural Electric Associations
        • Electrical Contractors
        • Mining
        • Oil
        • Foundations
        • Government
        • Parks and Recreations
        • Piling and Shoring
        • Boring and Drilling
        • Fencing

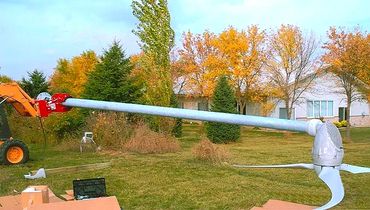

        • Wind Tower Installation
        • Solar Panel Installation
        • Electric Cooperatives



        Key Features

        •  The Heavy Duty Pole Setter attaches to a skid steer or any other  machine that is equipped with the Universal Quick 'Tach mounting system.
        • Rated for a 45 foot, 2500 pound pole.
        • Rotates 115° to the operator's left.
        • Attachment weighs 1,400 pounds.
        • The two jaws operate independently and close in sequence for safety and security.
        • As a stand-alone unit it employs two large clamp cylinders on the  base to rotate the tool-head and provide stability and precision.
        • Composed of ½ inch Grade 80 material or higher.

        Equipment Specifications

        •  The clamping is activated by two 3” X 6” clamp cylinders with check valves to ensure safety in case of a hydraulic line break.
        • Each clamp cylinder has a breakout force of 21,208 lbs.
        • Comes standard with rubber lining on the jaws to protect the pole and allow use on any type of pole.
        • The backing plate is designed to carry the pole above the machine  to facilitate the pole transportation and reduce the movement of the  pole.
        • Comes complete with hoses, flush faced couplers, spring hose mount and wiring harness.
        • Can be adapted to fit excavators, wheel loaders, telehandlers and backhoes*.

         *Requires specialty bolt-on mount.

        Download Spec Sheets

        Product Description and Applications

         The  EZ-Spot-UR, Inc Heavy Duty Pole Setter is designed to handle big, heavy  utility poles up to a 45 foot Class 1 pole. With the Heavy Duty Pole  Setter, the operator can easily pick up a pole on the ground or a  trailer and quickly rotate it to a vertical position. This allows the  operator to position the pole as desired with minimal effort and with a  secure clamp.  The “Big Bertha” offers 115° rotation and the jaws open  to 20.5 inches and close down to 5 inches**.

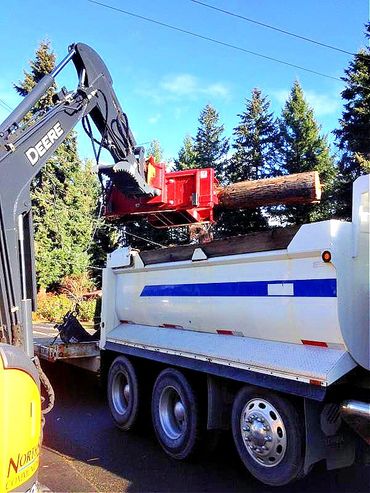

        The  Heavy Duty Pole Setter assures quick and easy loading unloading,  pulling and setting of 45 foot utility poles. The Heavy Duty Pole Setter  eliminates the need for cranes or slings and runs circles around a  Digger Derrick. The rubber lining prevents damage to the pole and the  sequencing jaws allow for precision setting. The Heavy Duty Pole Setter  will also allow you to get to places never thought possible with other  equipment which makes it ideal for repairs after a storm and for new  construction.

        **Inserts can be purchased to close the jaws down to 0.

        Download Product Description

        Brochures

        HD08 Handout 1 (pdf)Download
        HD08 Handout 2 (pdf)Download
        HD08 Handout 3 (pdf)Download
        HD08 Handout 4 (pdf)Download
        Infrastructure Brochure Handout (pdf)Download

        Spec Sheets

        Heavy Duty Pole Setter Closed (PDF)Download
        Heavy Duty Pole Setter Open (PDF)Download
        Heavy Duty Pole Setter Rotated Closed (PDF)Download
        Heavy Duty Pole Setter Rotated Open (PDF)Download
        Heavy Duty Pole Setter with Upper Jaw Insert (PDF)Download
        Heavy Duty Pole Setter with Medium Upper Jaw Insert (PDF)Download
        Heavy Duty Pole Setter with Komatsu PC210 Excavator Mount (PDF)Download
        Heavy Duty Pole Setter Specification Page (pdf)Download

        PowerPoint

        Heavy Duty Pole Setter PowerPoint2020 (pdf)Download

        Product Description

        Heavy Duty Pole Setter Product Description (pdf)Download
