EZ-2010 5 FINGER ROCK AND TREE HANDLER
5 Finger Rock & Tree Hand Information
Key Features
- Attaches to skid steers or any other machine that is equipped with the Universal Quick 'Tach mounting system.
- Attachment weighs 400 pounds not including the EZ Spot UR Base.
- Rotating attachment rotates 127° to the operators left when attached to an EZ Spot UR Double Cylinder Rotating Base.
- Can also be attached to an EZ Spot UR Fixed Non-Rotating Base.
- Opening of jaws is set by moving the clamp cylinder pins to 1 of 2 locations:
- Front Location
- Max opening is 24.50"
- Min opening is 4.25" (jaws will interlock with each other)
- Back Location
- Max opening is 40.50"
- Min opening is 18.00"
- Front Location
- Composed of Grade 50 material or higher and core welded to withstand years of wear and tear.
Equipment Specifications
- Equipped with two 3" x 6" hydraulic clamp cylinders. Each cylinder has a breakout force of 21,206 lbs.
- Handle rocks up to 5000 lbs.
- Handle trees up to 2000 lbs.
- The jaws are rubber lined for handling trees or rocks.
- Metal rock tips are also available.
- B&B inserts are also available to handle B&B plants without damaging roots.
- Comes complete with hoses, flush faced couplers, spring hose mount, and wiring harness.
- Can be adapted to fit excavators, wheel loaders, telehandlers and backhoes*.
*Requires specialty bolt-on mount.
Product Description and Applications

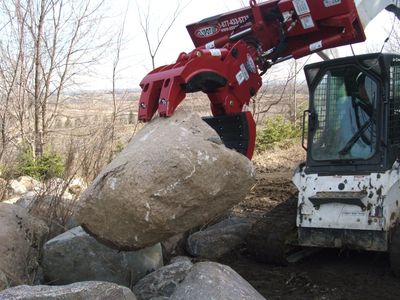

The EZ Spot UR 5 Finger Rock and Tree hand is the ultimate multi-tool that is ideal for landscapers, nurseries, farm and ranch use, and anywhere you need to move rocks or trees. The Rock & Tree Hand allows the operator to easily pick up large landscaping rocks and trees and place them with precision. The rubber lined jaws will prevent damage to trees and provides a secure grip. The Rock and Tree hand is very versatile and gives you the ability to place rocks and trees in tight spaces. Save time, money, and labor with the EZ Spot UR Rock & Tree Hand.
